Motivation

“We hang the petty thieves and appoint the great ones to public office.” - Aesop

The Corruption Perceptions Index (CPI) measures the perceived levels of government corruption in different countries.

The government corruption index seems very far away from us, but as socially concerned students, we want to explore some of the subtle and deep factors behind the index and the reasons for regional differences. And by visualizing the results to deepen the understanding of the index for people who see the report.

Data Processing and Cleaning

Source 1:Corruption Index

corruption=read_csv("./data/corruption_index.csv")|>
  janitor::clean_names()|>
  mutate(value=(as.numeric(x2020_yr2020)+as.numeric(x2020_yr2020)+as.numeric(x2020_yr2020))/3)|>
  select(country_name,country_code,series_name,value)|>
  pivot_wider(
    names_from = "series_name",
    values_from = "value"
  )|>
  janitor::clean_names()

We believe that it would be useful to ascertain the officially published data on the corruption index for the last 20 years. This data is provided by The World bank and is public information. World data bank gives estimated scores for countries on the overall corruption indicator. Following this indicator, we also find five indicators Government Effectiveness, Political Stability and Absence of Violence, Regulatory Quality, Rule of Law, Voice and Accountability may be correlated with the Corruption Index. This dataset contains information from 1996 to 2022.

The World data bank dataset was downloaded and read in. The dataset contains data for all indicators from 1996 to 2022 to reflect how they change from year to year. In this dataset, we keep all the variables. To make the data more readable and easier to analyze later, we made the dataset wide and created a new year variable to record year.

Source 2: Country Code

isso_code=
  read_html("https://www.countrycode.org/")|>
  html_elements("td:nth-child(3)")|>
  html_text()

country_name_isso=
  read_html("https://www.countrycode.org/")|>
  html_elements("td:nth-child(1)")|>
  html_text()

country_code=data.frame(country_name_isso,str_split_fixed(isso_code, '/',2))|>
  rename(c(country_code_2=X1,country_code_3=X2))|>
  mutate(country_code_2=gsub('[ ]','',country_code_2),
         country_code_3=gsub('[ ]','',country_code_3))|>
  distinct(country_code_3, .keep_all = T)

In order to have a better integration of the subsequent data and to avoid unnecessary trouble due to the fact that the names of the countries recorded are different in different datasets. We decided to use the country code to refer to the country.

This dataset is derived from countrycode.org. The data set was not available to download but we were able to scrape it from the website. We read the country name and ISSO code columns and split the ISSO code into country_code_2 and country_code_3.

Sourse 3:GDP

average_GDP=read_csv("./data/GDP.csv")|>
  janitor::clean_names()|>
  filter(average_gdp!="#DIV/0!")|>
  mutate(GDP=as.numeric(average_gdp))|>
  select(country_name,country_code,GDP)|>
  mutate(GDP=GDP/10^9)

GDP_EDA=
  read_csv("./data/GDP.csv")|>
  janitor::clean_names()|>
  select(country_code,x1996:x2022)|>
  pivot_longer(
    x1996:x2022,
    names_to = "year",
    values_to = "GDP"
               )|>
  mutate(GDP=GDP/10^9,
         year=substr(year,2,5))

GDP_per_capita_EDA=
  read_csv("./data/GDP_per_capita.csv")|>
  janitor::clean_names()|>
  select(country_code,x1996:x2022)|>
  pivot_longer(
    x1996:x2022,
    names_to = "year",
    values_to = "GDP_per_capita"
               )|>
  mutate(year=substr(year,2,5))

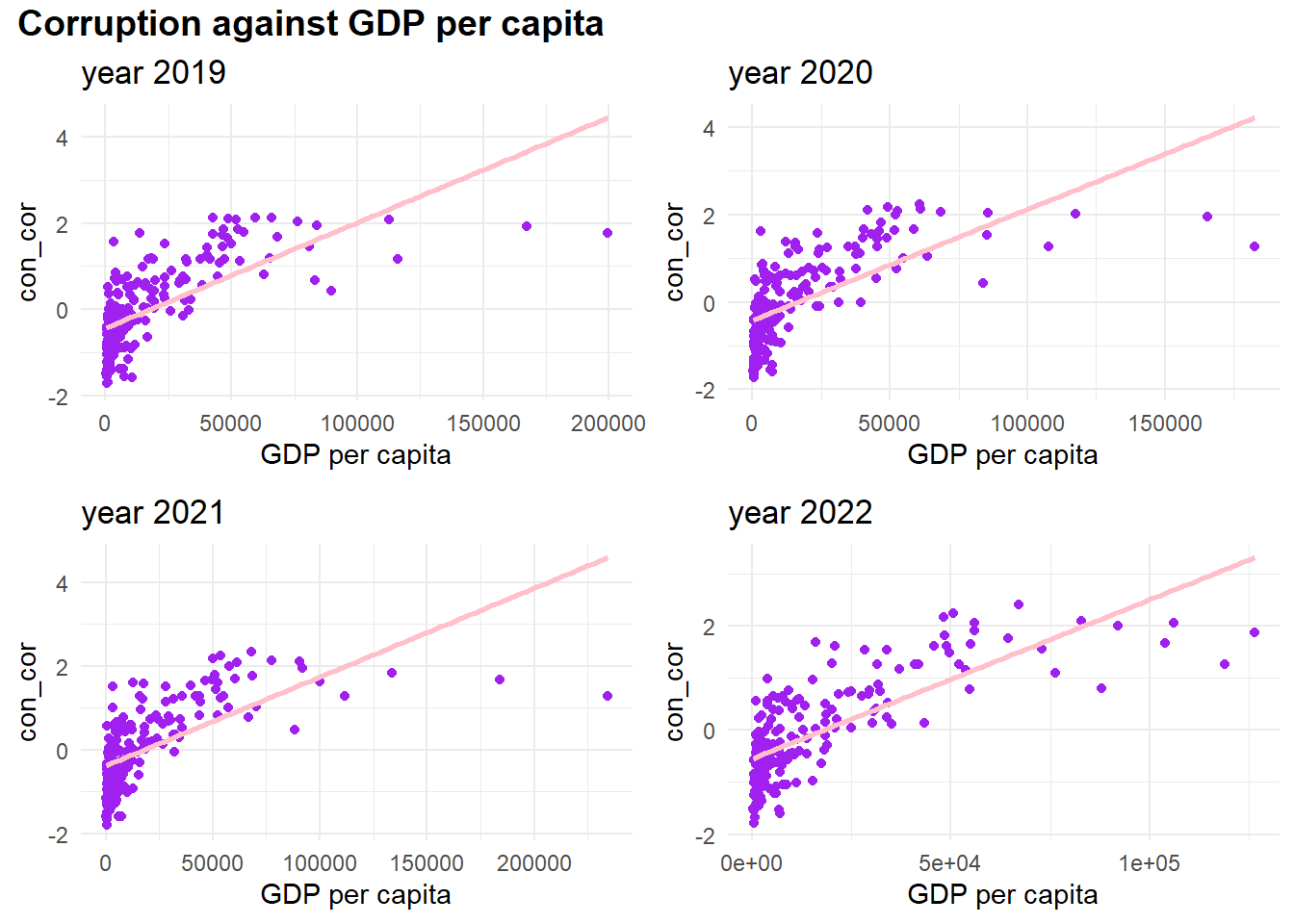

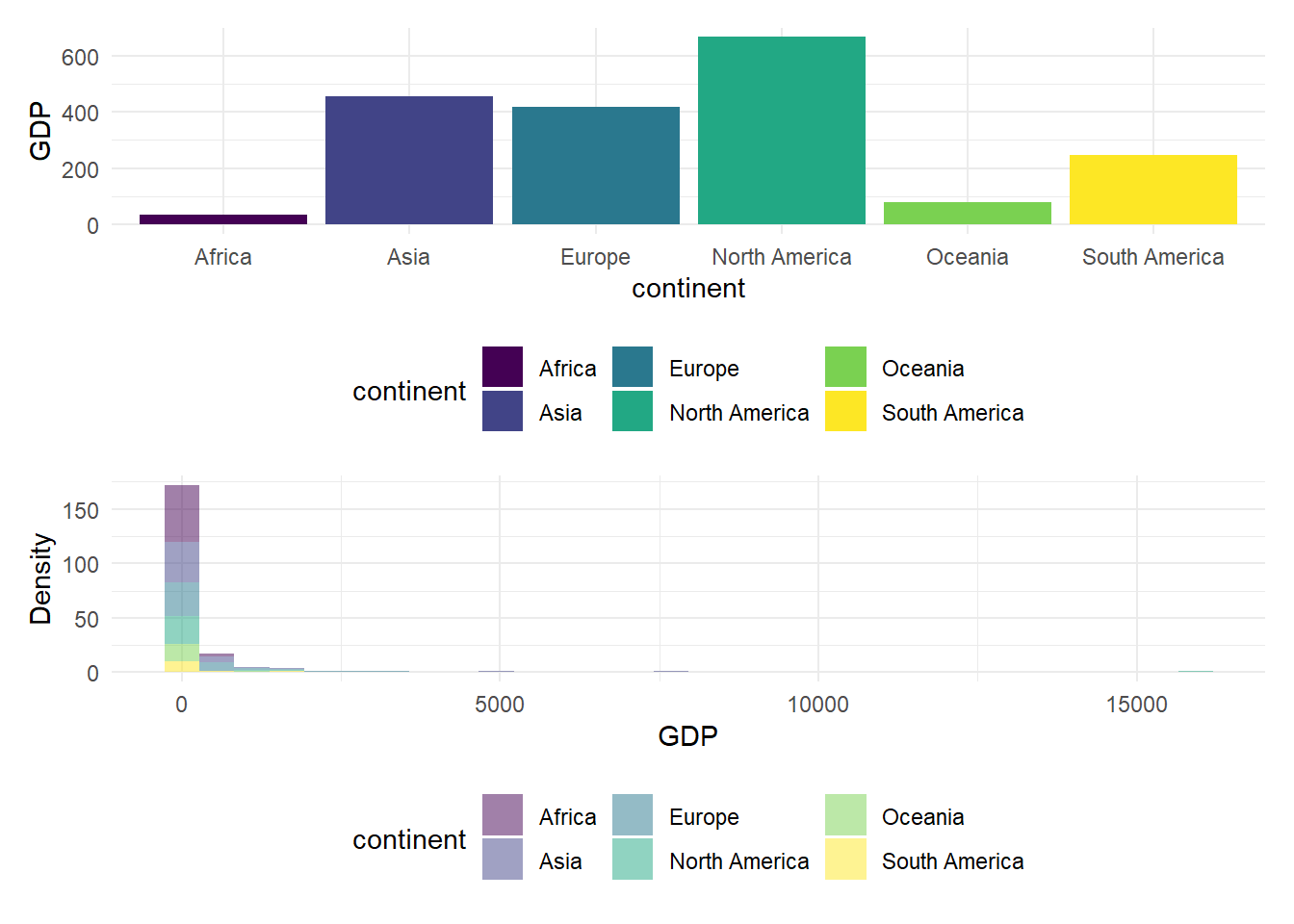

We are also interested in whether there is a correlation between a country’s level of economic development and the corruption index. This dataset comes from The World Bank. This dataset records the GDP of each country from 1960 to 2022. we divide the GDP by \(10^9\) to make the data more readable. We pivoted this dataset to long format and created average_GDP for future analysis.

Source 4:Continent

Africa=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/africa-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()

Asia=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/asia-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()

Europe=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/europe-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()|>
  append("JEY")

North_America=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/north-america-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()

South_America=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/south-america-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()

Oceania=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/australia-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()

Antarctica=
  read_html("https://www.countrycallingcodes.com/iso-country-codes/antarctica-codes.php") |>
  html_elements("tr+ tr td:nth-child(3) font") |>
  html_text()

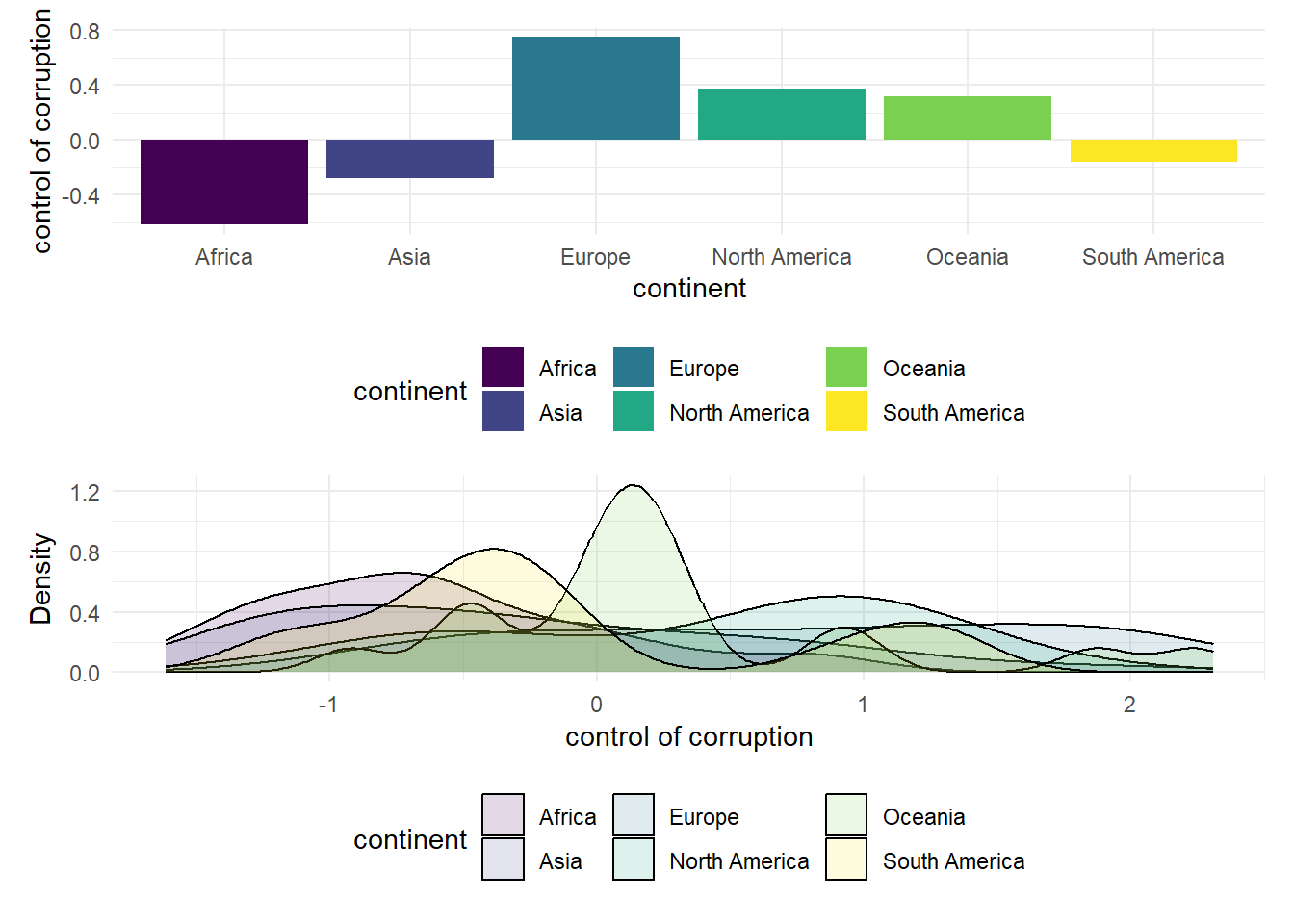

The geographical location of a country may also have a bearing on a country’s corruption index. Therefore, we decided to find the continent on which each country is located and explore whether it has an impact on the corruption index. This dataset comes from countrycallingcodes.com, where we read the country codes of the countries contained in each continent. The data set was not available to download but we were able to scrape it from the website. In future analyses, we will use this data to match the continent of the country.

Source 5: Development

developed=
  read_csv("./data/developed-countries-2023.csv")|>
  pull(cca3)
least_develpoed=
  read_csv("./data/least-developed-countries-2023.csv")|>
  pull(cca3)

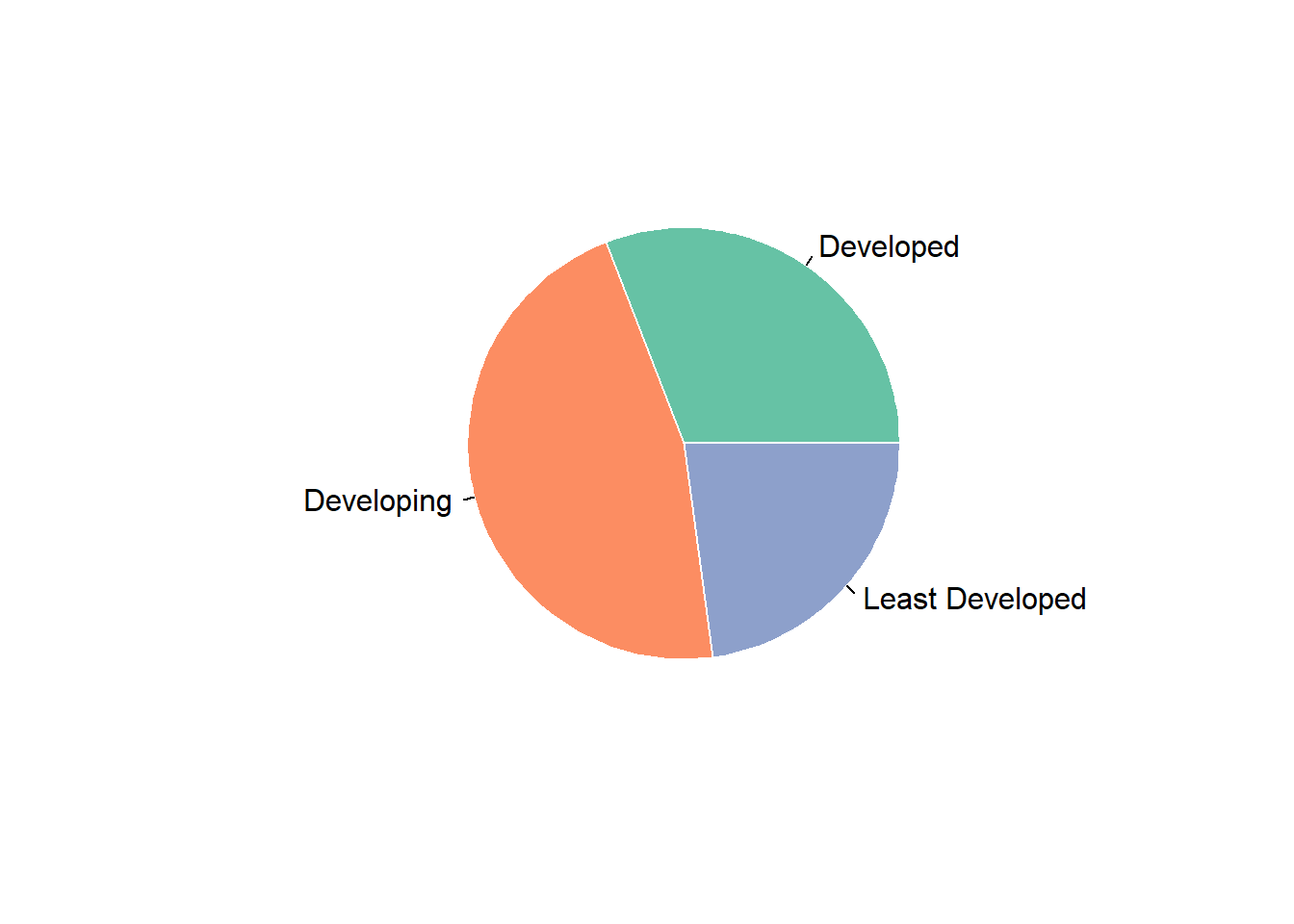

Countries in the world can be roughly divided into developed countries, developing countries and least developed countries. A country’s corruption index may be related to its state of development. This dataset comes from World Population Review. This dataset records the state of development of countries in 2023.

Source 6: Coordinate

coordinate_html=
  read_html("https://developers.google.com/public-data/docs/canonical/countries_csv?hl=en")

country_name=
  coordinate_html |>
  html_elements("td:nth-child(4)") |>
  html_text()

country_code2=
  coordinate_html |>
  html_elements("td:nth-child(1)") |>
  html_text()

latitude=
  coordinate_html |>
  html_elements("td:nth-child(2)") |>
  html_text()

longitude=
  coordinate_html |>
  html_elements("td:nth-child(3)") |>
  html_text()

country_coordinate=
  data.frame(country_name,country_code2,latitude,longitude)|>
  left_join(country_code,join_by(country_code2==country_code_2))|>
  select(country_name,country_code=country_code_3,latitude,longitude)

We need the coordinates of the countries for the future EDA session. This dataset comes from Google for Developers. Since this dataset records two-digit country codes and the other datasets use three-digit country codes, we use the left_join function to match their country codes and keep only the three-digit country code.

Source 7: Population

average_population=read_csv("./data/population.csv")|>
  janitor::clean_names()|>
  filter(average_population!="#DIV/0!")|>
  mutate(population=as.numeric(average_population))|>
  select(country_name,country_code,population)|>
  mutate(population=population/(10^7))

population=read_csv("./data/population.csv")|>
  janitor::clean_names()|>
  select(country_name,country_code,x1996:x2022)|>
  pivot_longer(
    x1996:x2022,
    names_to = "year",
    values_to = "population")|>
  mutate(year=substr(year,2,5),
         population=population/(10^7))

We are also interested in whether there is a correlation between a country’s population and the corruption index. This dataset comes from The World Bank. This dataset records the population of each country from 1960 to 2022. We pivoted this dataset to long format and created average_population for future analysis.

Source 8: CPI

country_code_cpi =
  country_code |>
    select(-country_code_2) |>
    rename("Country / Territory" = country_name_isso,
           "Country code" = country_code_3)

numberlist = c("A1:M200", "N1:P200", "Q1:S200", "T1:V200", "W1:Y200", "Z1:AB200", "AC1:AE200", "AF1:AH200", "AI1:AK200", "AL1:AN200", "AO1:AQ200", "AR1:AT200", "AU1:AW200", "AX1:AZ200", "BA1:BC200")

read_cpi =
  function(address, scope){
    tidy_data =
  read_excel(address, sheet = 1, scope)

    tidy_data
}

for (i in 1:length(numberlist)){

  tidy_data =
    read_cpi("./data/Country CPI 1998-2022.xlsx",
            numberlist[[i]])

  country_code_cpi =
    country_code_cpi |>
    left_join(tidy_data, by = "Country / Territory")
}

country_code_cpi =
    country_code_cpi |>
    select("Country / Territory", "Country code.x", contains(c("20", "19"))) |>
  janitor::clean_names() |>
  rename("country_code" = country_code_x)

names(country_code_cpi) =
  gsub("cpi_score_", "", names(country_code_cpi))

country_code_cpi$"2005" = as.numeric(country_code_cpi$"2005")

cols_to_check =  as.character(c(1998 : 2022))

country_code_cpi =
  country_code_cpi |>
  select(sort(names(country_code_cpi))) |>
  relocate(country_territory, country_code)|>
  mutate_at(vars(c("1998":"2011")), ~ . * 10) |>
  filter(!if_all(cols_to_check, is.na))

country_code_cpi |>
  write.table(
    file = "./data/cleaned_data/cpi_data_year.csv",
    sep = ",",
    row.names = FALSE)

We also recorded the CPI dataset for further EDA session. This dataset comes from Transparency International. The dataset contains the CPI of each countries from 1998 to 2022. In this dataset, we make data arranged by wide format.

Merge Datasets

corruption_data=left_join(corruption,country_code,join_by(country_code==country_code_3))|>
  left_join(average_GDP,join_by(country_code==country_code))|>
  left_join(country_coordinate,join_by(country_code))|>
  left_join(average_population,by=join_by(country_code))|>
  mutate(development=case_when(
    country_code %in% developed ~ "Developed",
    country_code %in% least_develpoed ~ "Least Developed",
    (!country_code %in% developed) & (!country_code %in% least_develpoed) ~ "Developing"
  ))|>
  mutate(continent=case_when(
    country_code %in% Asia ~ "Asia",
    country_code %in% Africa ~ "Africa",
    country_code %in% Europe ~ "Europe",
    country_code %in% North_America ~ "North America",
    country_code %in% South_America ~ "South America",
    country_code %in% Oceania ~ "Oceania",
    country_code %in% Antarctica ~ "Antarctica"
  ))|>
  select(country_name=country_name.x,country_code,
         con_cor=control_of_corruption_estimate,
         gov_eff=government_effectiveness_estimate,
         pol_vio=political_stability_and_absence_of_violence_terrorism_estimate,
         regu_qual=regulatory_quality_estimate,
         rul_law=rule_of_law_estimate,
         voi_acc=voice_and_accountability_estimate,
         GDP,population,latitude,longitude,development,continent)

write.table(corruption_data,"./data/cleaned_data/overall_dataset.csv",row.names=FALSE,col.names=TRUE,sep=",")


corruption_EDA_pre=read_csv("./data/corruption_index.csv")|>
  janitor::clean_names()|>
  pivot_longer(
    cols = x1996_yr1996:x2022_yr2022,
    names_to = "year",
    values_to = "value"
  )|>
  mutate(year=substr(year,2,5))|>
  select(-series_code)|>
  pivot_wider(
    names_from = "series_name",
    values_from = "value"
  )


corruption_EDA=
  corruption_EDA_pre|>
  left_join(GDP_EDA,by = join_by(country_code, year))|>
  left_join(GDP_per_capita_EDA,by = join_by(country_code, year))|>
  janitor::clean_names()|>
  select(country_name,country_code,year,
         con_cor=control_of_corruption_estimate,
         gov_eff=government_effectiveness_estimate,
         pol_vio=political_stability_and_absence_of_violence_terrorism_estimate,
         regu_qual=regulatory_quality_estimate,
         rul_law=rule_of_law_estimate,
         voi_acc=voice_and_accountability_estimate,
         gdp,gdp_per_capita)|>
  mutate(continent=case_when(
    country_code %in% Asia ~ "Asia",
    country_code %in% Africa ~ "Africa",
    country_code %in% Europe ~ "Europe",
    country_code %in% North_America ~ "North America",
    country_code %in% South_America ~ "South America",
    country_code %in% Oceania ~ "Oceania",
    country_code %in% Antarctica ~ "Antarctica"
  ))|>
  mutate(development=case_when(
    country_code %in% developed ~ "Developed",
    country_code %in% least_develpoed ~ "Least Developed",
    (!country_code %in% developed) & (!country_code %in% least_develpoed) ~ "Developing"
  ))|>
    left_join(country_coordinate,join_by(country_code))|>
  left_join(population,join_by(country_code,year))|>
  select(country_name=country_name.x,everything(),-country_name.y,-country_name)|>
  mutate(con_cor=as.numeric(con_cor),
         gov_eff=as.numeric(gov_eff),
         pol_vio=as.numeric(pol_vio),
         regu_qual=as.numeric(regu_qual),
         rul_law=as.numeric(rul_law),
         voi_acc=as.numeric(voi_acc),
         year=as.numeric(year)
         )

write.table(corruption_EDA,"./data/corruption_EDA.csv",row.names=FALSE,col.names=TRUE,sep=",")

Since we cleaned the datasets we got, we need to merge these datasets for our future analysis. Since country_code is the common variable in every datasets, we use left_join function to merge these datasets together. For those dataset is not suitable for left_join, we use case_when function to merge them into the cleaned dataset. We also need to make sure every variable in the apporite type. The cleaned dataset include the following variables:

country_name: Country names
country_code: Country codes
year: year
con_cor: Control of corruption
gov_eff: Government effectiveness
pol_vio: Political stability and absence of violence terrorism
regu_qual: Regulatory quality
rul_law: Rule of law
voi_acc: Voice and accountability
gdp:GDP of countries(\(10^9\))
gdp_per_capita: GDP per capita of countries
continent: Continent where the countries are located
development: Status of development of countries
latitude: latitude
longitude: longitude
population: Population of countries(\(10^7\))

For the dataset we used in regression section, we take the average value of the numeric variables from 2020-2022.

country_name	country_code	con_cor	gov_eff	pol_vio	regu_qual	rul_law	voi_acc	GDP	population	latitude	longitude	development	continent
Afghanistan	AFG	-1.4936998	-1.6095092	-2.7026317	-1.3891630	-1.8313743	-1.0776886	17.363294	4.0066821	33.93911	67.709953	Least Developed	Asia
Albania	ALB	-0.5729245	-0.1548803	0.0885765	0.2219672	-0.3762492	0.0864026	17.325132	0.2808383	41.153332	20.168331	Developing	Europe
Algeria	DZA	-0.6664602	-0.5734335	-0.8478143	-1.3553003	-0.8003030	-1.0879523	167.043000	4.4177620	28.033886	1.659626	Developing	Africa
American Samoa	ASM	1.2660053	0.6328993	1.0916016	0.5253105	1.1194303	0.9520435	0.712500	0.0045166	-14.270972	-170.132217	Developing	Oceania
Andorra	AND	1.2660053	1.7494141	1.5885718	1.3354213	1.6162784	1.0862534	3.189393	0.0078853	42.546245	1.601554	Developed	Europe
Angola	AGO	-0.9386725	-1.2583939	-0.6007260	-0.8568535	-0.9509994	-0.8160028	74.213601	3.4507082	-11.202692	17.873887	Least Developed	Africa
Anguilla	AIA	0.6324695	0.9120280	1.5037429	0.9303660	0.3741581	NA	NA	NA	18.220554	-63.068615	Developing	North America
Antigua and Barbuda	ATG	0.2385333	-0.2044867	0.9295049	0.4976937	0.4079735	0.7427933	1.578157	0.0093215	17.060816	-61.796428	Developing	North America
Argentina	ARG	-0.1637807	-0.2538182	-0.0720262	-0.4983443	-0.4873348	0.5852944	501.846000	4.5806780	-38.416097	-63.616672	Developed	South America
Armenia	ARM	-0.0034387	-0.3046165	-0.7716423	0.2387480	-0.1258523	0.0471597	15.335297	0.2792350	40.069099	45.038189	Developing	Asia
Aruba	ABW	1.1993917	1.0752245	1.3714974	0.9148085	1.2702624	1.2821430	2.868029	0.0106522	12.52111	-69.968338	Developing	North America
Australia	AUS	1.6329559	1.5737755	0.8616769	1.8139470	1.6142451	1.2980305	1518.350000	2.5774101	-25.274398	133.775136	Developed	Oceania
Austria	AUT	1.4777892	1.6062636	0.8875288	1.3952273	1.7701634	1.3944378	462.331000	0.8971730	47.516231	14.550072	Developed	Europe
Azerbaijan	AZE	-1.0770841	-0.1555638	-0.8522475	-0.3360401	-0.7307201	-1.5415164	58.746490	1.0135296	40.143105	47.576927	Developing	Asia
Bahamas, The	BHS	1.1062059	0.4056442	0.8302374	0.0013662	0.0232638	0.9154646	11.393200	0.0408120	25.03428	-77.39628	Developed	North America
Bahrain	BHR	-0.0935939	0.3907681	-0.6101093	0.6148575	0.4553994	-1.4533018	39.438677	0.1470989	25.930414	50.637772	Developed	Asia
Bangladesh	BGD	-1.0036772	-0.7797257	-0.9158078	-0.9062135	-0.5679290	-0.7695580	416.789000	16.9321191	23.684994	90.356331	Least Developed	Asia
Barbados	BRB	1.1940669	0.4440223	1.1205775	0.4677958	0.2966763	1.1254591	5.051171	0.0281176	13.193887	-59.543198	Developing	North America
Belarus	BLR	-0.1339642	-0.8295090	-0.8876082	-0.7998758	-1.0822419	-1.4534981	67.946320	0.9297079	53.709807	27.953389	Developed	Europe
Belgium	BEL	1.4459563	1.0787830	0.5210230	1.3436358	1.3280041	1.2784452	566.056000	1.1600334	50.503887	4.469936	Developed	Europe

Exploratory Analysis

Import control of corruption data

corruption = read_csv('.\\data\\corruption_EDA.csv')

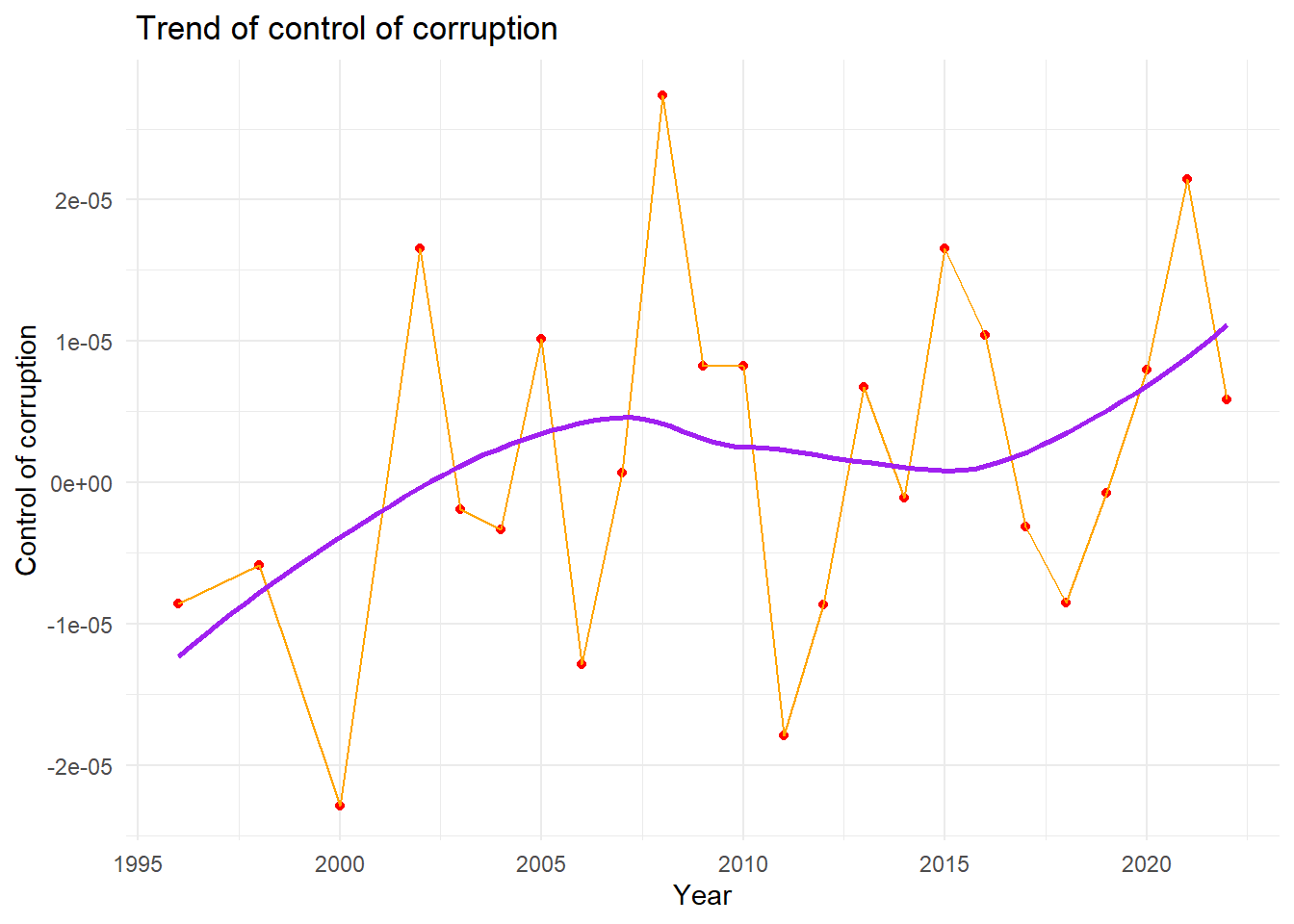

Data Trend

corruption|>
  group_by(year)|>
  summarise(mean = mean(signif(con_cor,4),na.rm = TRUE))|>
  ggplot(aes(x=year, y=mean)) +
  geom_point(color = 'red')+geom_line(aes(group=1),color = 'orange')+
  geom_smooth(se = FALSE,color = "purple")+
  labs(
    title = " Trend of control of corruption",
    x = "Year",
    y = "Control of corruption"
  )

We draw a line plot with a smooth line to show the overall trend of control of corruption from 1996 to 2022. We can see from the plot, that there is a increasing trend for the control of corruption index from 1996 to 2007,and then declining trend from 2007 to 2015. From 2015 to 2022, there is a increasing trend for the control of corruption. In general, there is a increasing trend for control of corruption from 1996 to 2022.

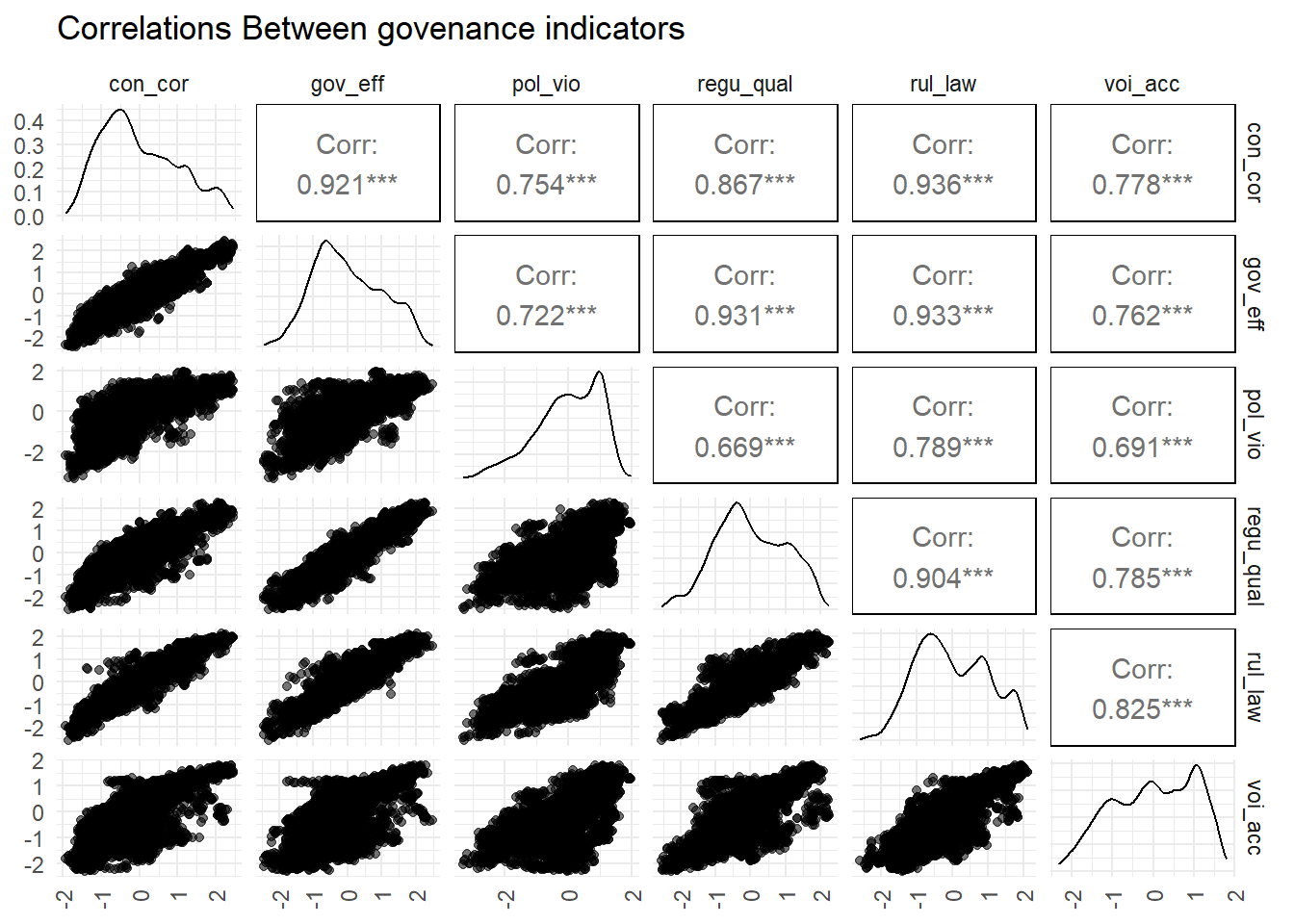

With Governance Indicators

corruption %>%
  select(con_cor,gov_eff,pol_vio,regu_qual,rul_law,voi_acc
) %>%
  ggpairs(
    title = "Correlations Between govenance indicators",
    ggplot2::aes(alpha = 0.1)
  ) +
  scale_fill_discrete() +
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))

We also managed to show how control of corruption relate to other 5 types of governance indicator. The plot shows that the control of corruption has most significant correlation(bigger than 0.90) with government effectiveness and rule of law.

Then we make scatter plots of control of corruption and fit it with linear line against each of 5 types of governance indicators to visualize the relationship.

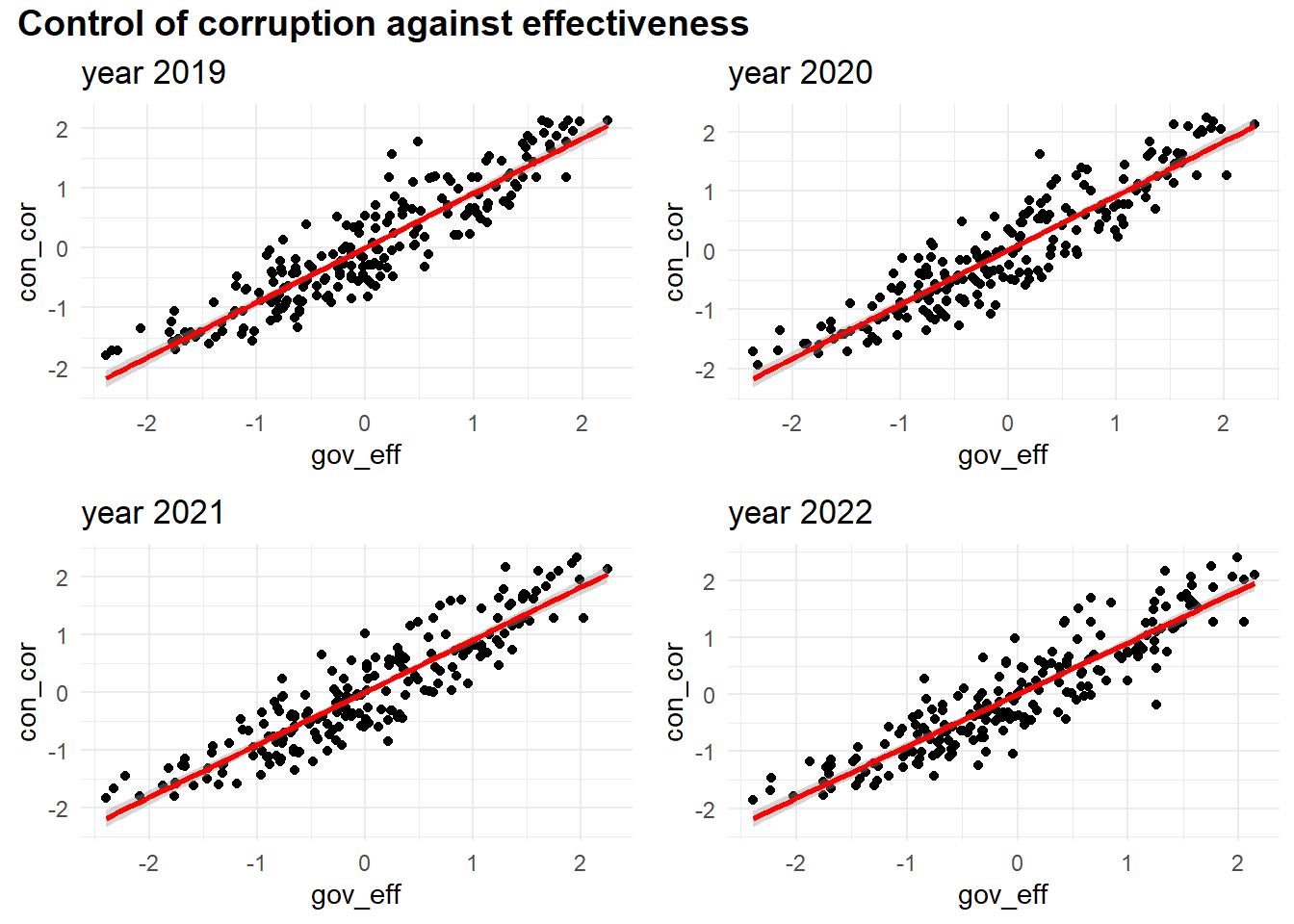

Level - 1

myplots <- vector('list', 4)
for (i in 2019:2022){
    myplots[[i-2018]] =
      corruption %>%
      filter(year == i) %>%
      ggplot(aes(x = gov_eff, y = con_cor))+geom_point()+geom_smooth(method = 'lm', se = TRUE, color = 'red')+labs(title = sprintf("year %s", i))

plot_row1 <- plot_grid(myplots[[1]], myplots[[2]])
plot_row2 <- plot_grid(myplots[[3]], myplots[[4]])
}
# title
title <- ggdraw() +
  draw_label(
    "Control of corruption against effectiveness",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    # add margin on the left of the drawing canvas,
    # so title is aligned with left edge of first plot
    plot.margin = ggplot2::margin(0, 0, 0, 7)
  )
plot_grid(title,plot_row1,plot_row2 ,ncol=1,  label_size = 12,rel_heights=c(0.1, 1,1))

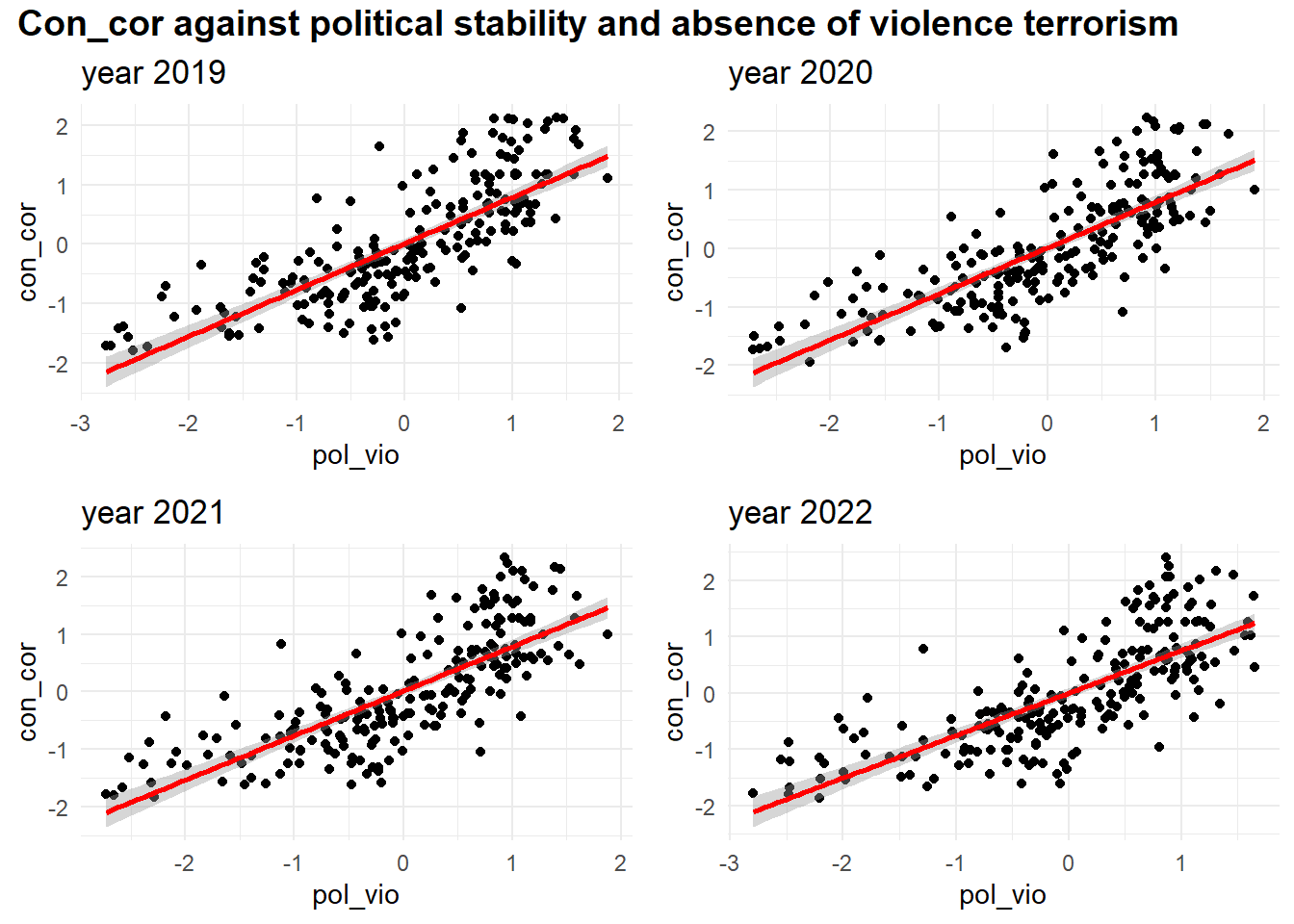

Level - 2

myplots <- vector('list', 4)
for (i in 2019:2022){
    myplots[[i-2018]] =
      corruption %>%
      filter(year == i) %>%
      ggplot(aes(x = pol_vio, y = con_cor))+geom_point()+geom_smooth(method = 'lm', se = TRUE, color = 'red')+labs(title = sprintf("year %s", i))
}

plot_row1 <- plot_grid(myplots[[1]], myplots[[2]])
plot_row2 <- plot_grid(myplots[[3]], myplots[[4]])
# title
title <- ggdraw() +
  draw_label(
    "Con_cor against political stability and absence of violence terrorism",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    # add margin on the left of the drawing canvas,
    # so title is aligned with left edge of first plot
    plot.margin = ggplot2::margin(0, 0, 0, 7)
  )
plot_grid(title,plot_row1,plot_row2 ,ncol=1,  label_size = 12,rel_heights=c(0.1, 1,1))

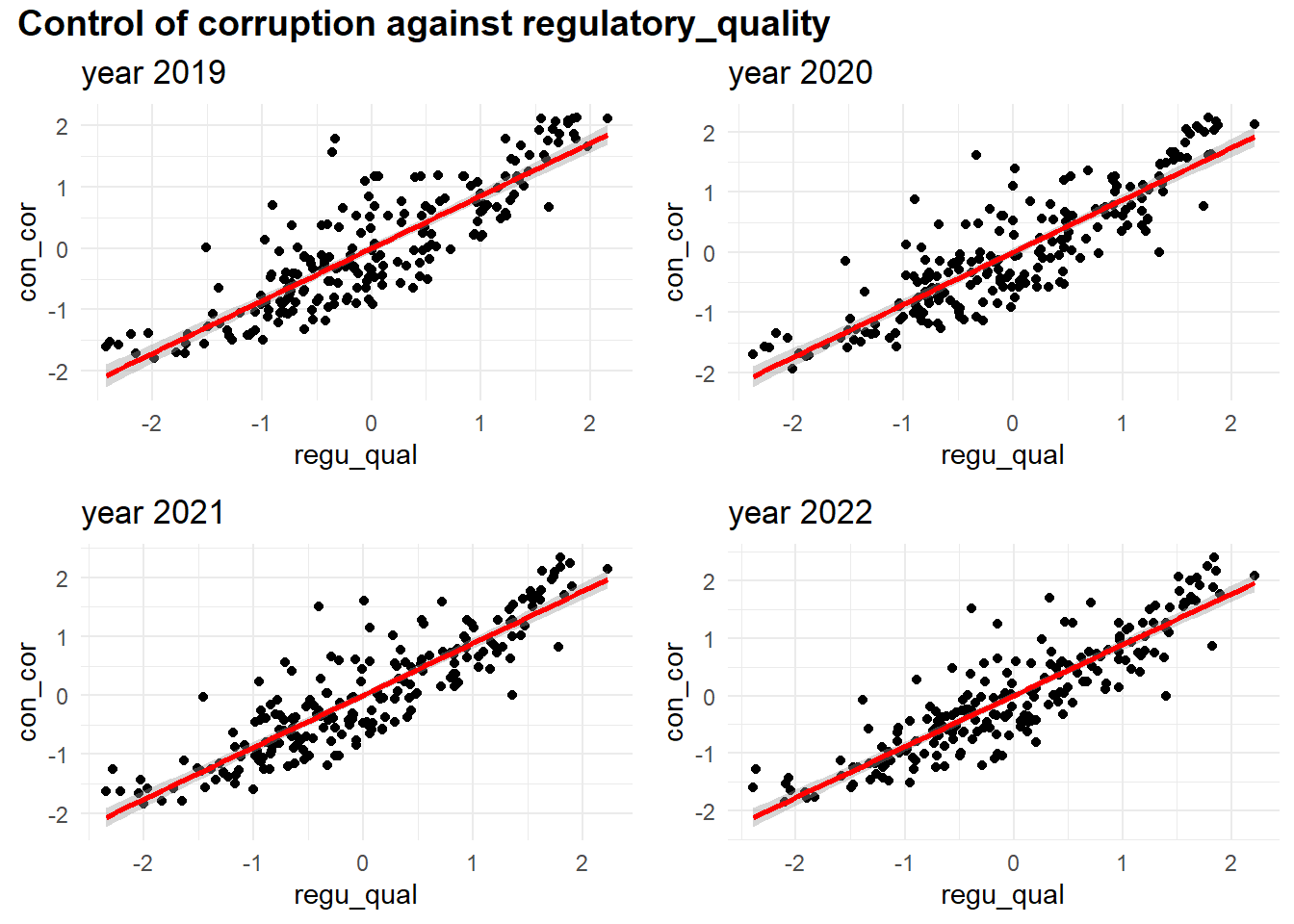

Level - 3

myplots <- vector('list', 4)
for (i in 2019:2022){
    myplots[[i-2018]] =
      corruption %>%
      filter(year == i) %>%
      ggplot(aes(x = regu_qual, y = con_cor))+geom_point()+geom_smooth(method = 'lm', se = TRUE, color = 'red')+labs(title = sprintf("year %s", i))
}

plot_row1 <- plot_grid(myplots[[1]], myplots[[2]])
plot_row2 <- plot_grid(myplots[[3]], myplots[[4]])
# title
title <- ggdraw() +
  draw_label(
    "Control of corruption against regulatory_quality",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    # add margin on the left of the drawing canvas,
    # so title is aligned with left edge of first plot
    plot.margin = ggplot2::margin(0, 0, 0, 7)
  )
plot_grid(title,plot_row1,plot_row2 ,ncol=1,  label_size = 12,rel_heights=c(0.1, 1,1))

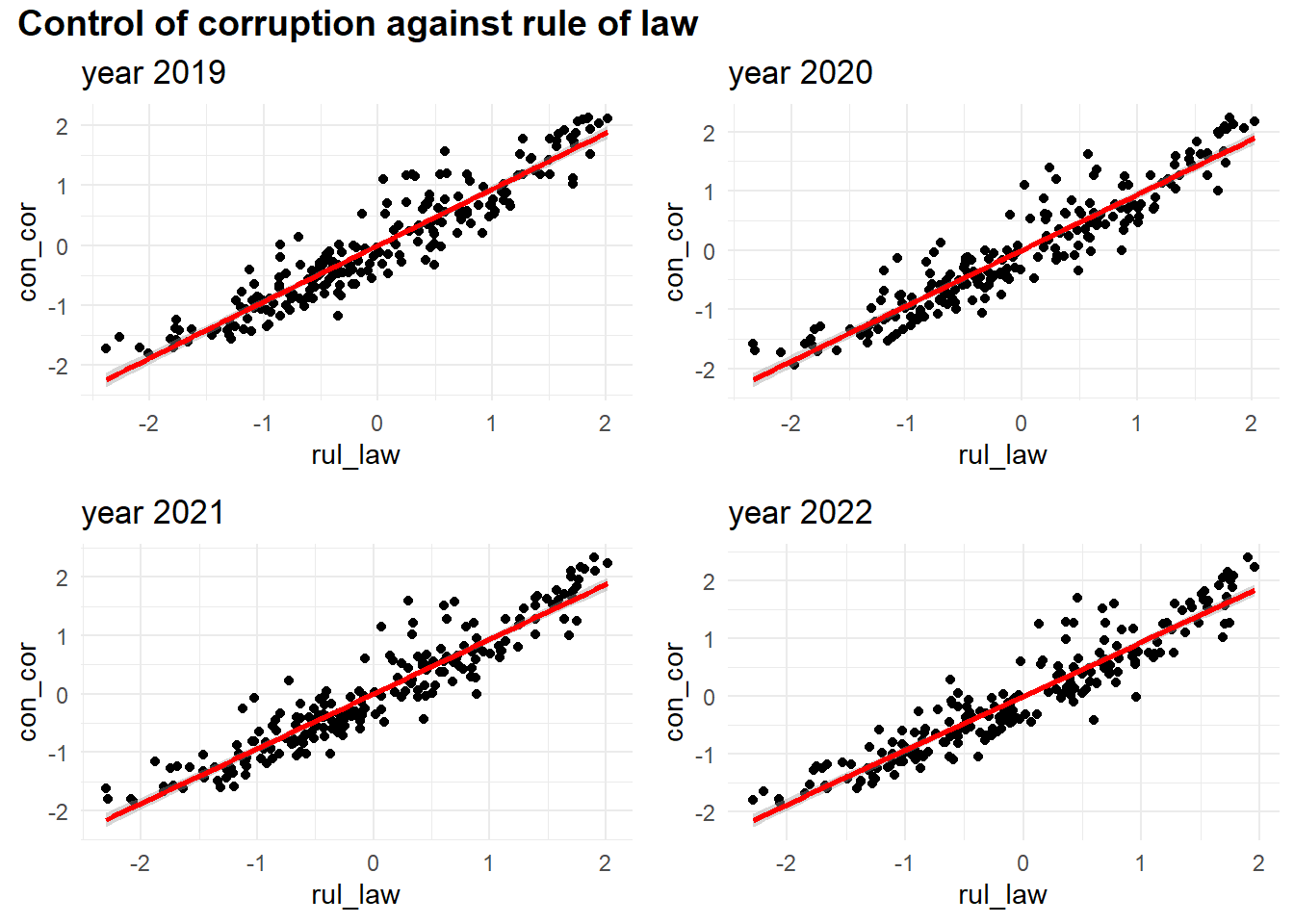

Level - 4

myplots <- vector('list', 4)
for (i in 2019:2022){
    myplots[[i-2018]] =
      corruption %>%
      filter(year == i) %>%
      ggplot(aes(x = rul_law
, y = con_cor))+geom_point()+geom_smooth(method = 'lm', se = TRUE, color = 'red')+labs(title = sprintf("year %s", i))
}

plot_row1 <- plot_grid(myplots[[1]], myplots[[2]])
plot_row2 <- plot_grid(myplots[[3]], myplots[[4]])
# title
title <- ggdraw() +
  draw_label(
    "Control of corruption against rule of law",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    # add margin on the left of the drawing canvas,
    # so title is aligned with left edge of first plot
    plot.margin = ggplot2::margin(0, 0, 0, 7)
  )
plot_grid(title,plot_row1,plot_row2 ,ncol=1,  label_size = 12,rel_heights=c(0.1, 1,1))

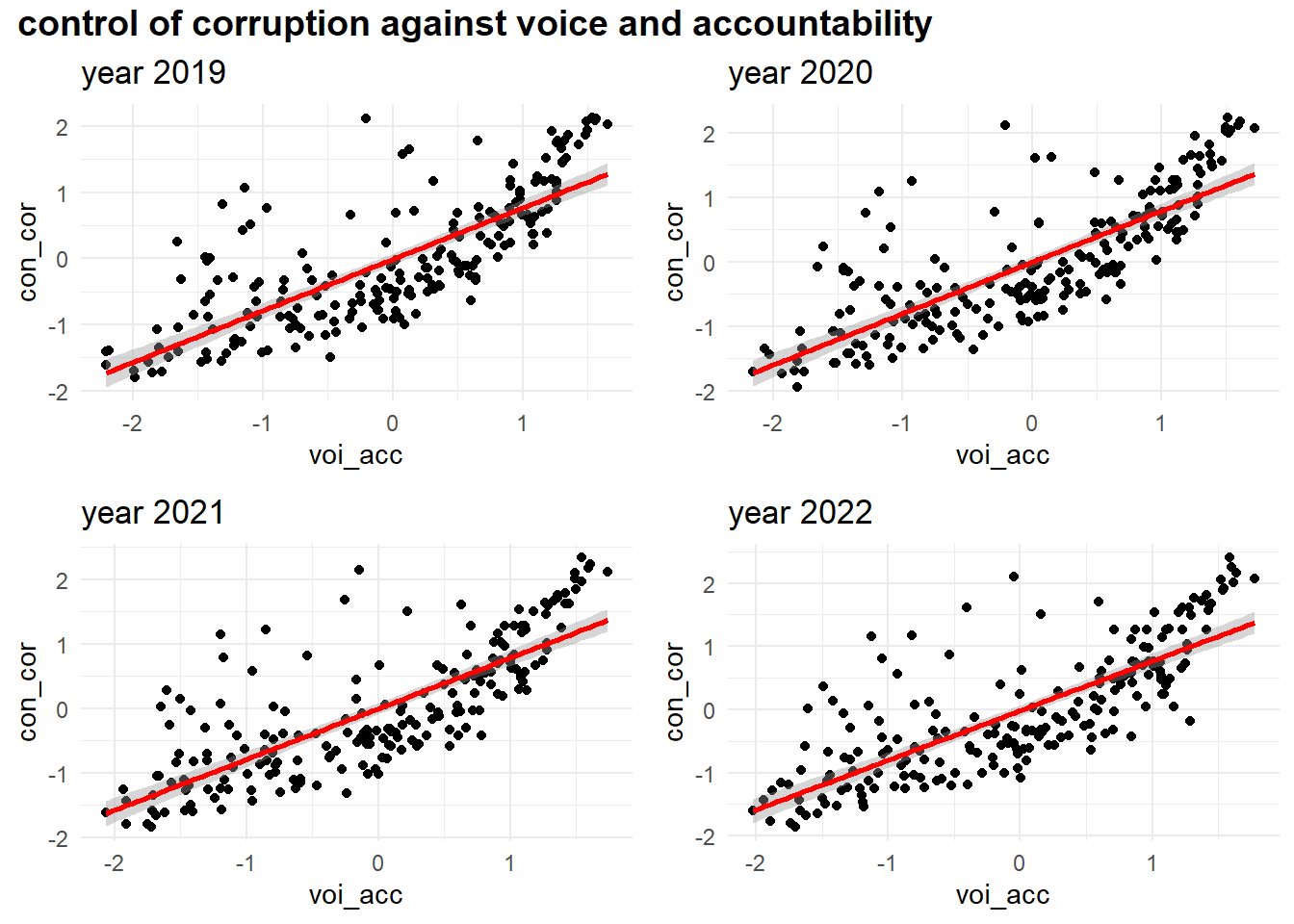

Level - 5

myplots <- vector('list', 4)
for (i in 2019:2022){
    myplots[[i-2018]] =
      corruption %>%
      filter(year == i) %>%
      ggplot(aes(x = voi_acc
, y = con_cor))+geom_point()+geom_smooth(method = 'lm', se = TRUE, color = 'red')+labs(title = sprintf("year %s", i))
}

plot_row1 <- plot_grid(myplots[[1]], myplots[[2]])
plot_row2 <- plot_grid(myplots[[3]], myplots[[4]])
# title
title <- ggdraw() +
  draw_label(
    "control of corruption against voice and accountability",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    # add margin on the left of the drawing canvas,
    # so title is aligned with left edge of first plot
    plot.margin = ggplot2::margin(0, 0, 0, 7)
  )
plot_grid(title,plot_row1,plot_row2 ,ncol=1,  label_size = 12,rel_heights=c(0.1, 1,1))

With Corruption by Development

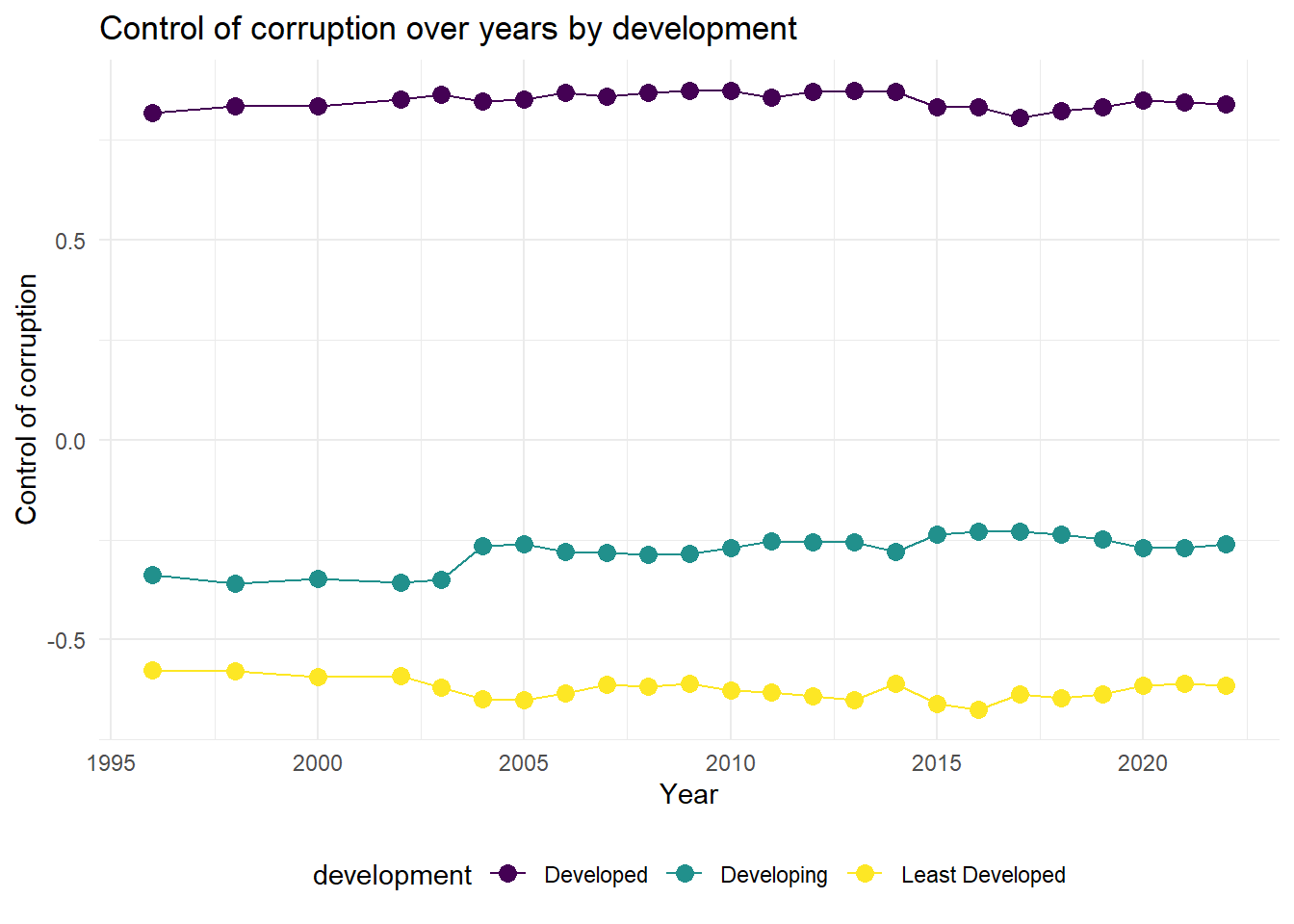

Scatter Plot

corruption|>
  group_by(year,development)|>
  summarize(mean_cpi = mean(signif(con_cor,4),na.rm = TRUE))|>
  ggplot(aes(x = year,y = mean_cpi, group = development,color = development)) +
  geom_point(shape=19,size = 3)+geom_line()+
  labs(
    title = "Control of corruption over years by development",
    x = "Year",
    y = "Control of corruption")

From the plot,We can see that the control of corruption for developing countries is getting better from 1996 to 2022 in general.For least developed countries, the control of corruption rate drops from 2002 to 2005 and then keeps fluctuation.For developed countries, the control of corruption index goes up from 1996 to 2014, and then falls.

Pie Plot

development_prop = corruption|>
  group_by(development)|>
  summarize(count = n_distinct(country_name))


myPalette <- brewer.pal(3, "Set2")
pie(pull(development_prop,count) , labels = c("Developed","Developing","Least Developed"), border="white", col=myPalette )

We have a pie plot for proportion of population by development.From the pie plot, we can read that developing countries account for the largest proportion. Developed countries is the second, and least developed countries is the third.

Together with the last plot, we can attribute the rising trend of control of corruption index over the world to rising trend of developing countries. The rising trend of developing countries outweigh the falling trend of least developed countries.

With Corruption by Continents

Continent is also a import factor we need to consider.We compares the population,gdp and control of corruption among continents by a series of plots.

mean_cpi = corruption|>
  group_by(continent)|>
  summarize(mean_cpi = mean(con_cor,na.rm=TRUE))|>
  ggplot(aes(x = continent,y = mean_cpi,fill = continent))+
  geom_bar(stat='identity')+
  labs(
    y = 'control of corruption'
  )

cpi_density =
  corruption|>
  group_by(continent,country_name)|>
  summarize(con_cor = mean(con_cor,na.rm = TRUE))|>
  ggplot(
    aes(
      x = con_cor
    )
  ) +
  geom_density(aes(fill = continent), alpha = 0.15) +
  labs(
    x = "control of corruption",
    y = "Density"
  )
cpi_continent = mean_cpi/cpi_density
cpi_continent

We draw a bar plot of mean control of corruption index by continents and a density plot to show the distribution of control of corruption index. From the histogram, we can see that Europe has the highest control of corruption index, whereas Africa has the lowest one.

With GDP

mean_gdp = corruption|>
  group_by(continent)|>
  summarize(gdp = mean(gdp,na.rm=TRUE))|>
  ggplot(aes(x = continent,y = gdp,fill = continent))+
  geom_bar(stat='identity')+
  labs(
    y = 'GDP'
  )

gdp_density = corruption|>
  group_by(continent,country_name)|>
  summarize(gdp = mean(gdp,na.rm = TRUE))|>
  ggplot(
    aes(
      x = gdp
    )
  ) +
  geom_histogram(aes(fill = continent), alpha = 0.5) +
  labs(
    x = "GDP",
    y = "Density"
  )
gdp_continent = mean_gdp/gdp_density


gdp_continent

The upper bar plot shows mean GDP of countries in each continent.The lower histogram plot shows the distribution of GDP in each continent. We can get that North America has the highest mean GDP, and Africa has the lowest mean GDP.

With Population

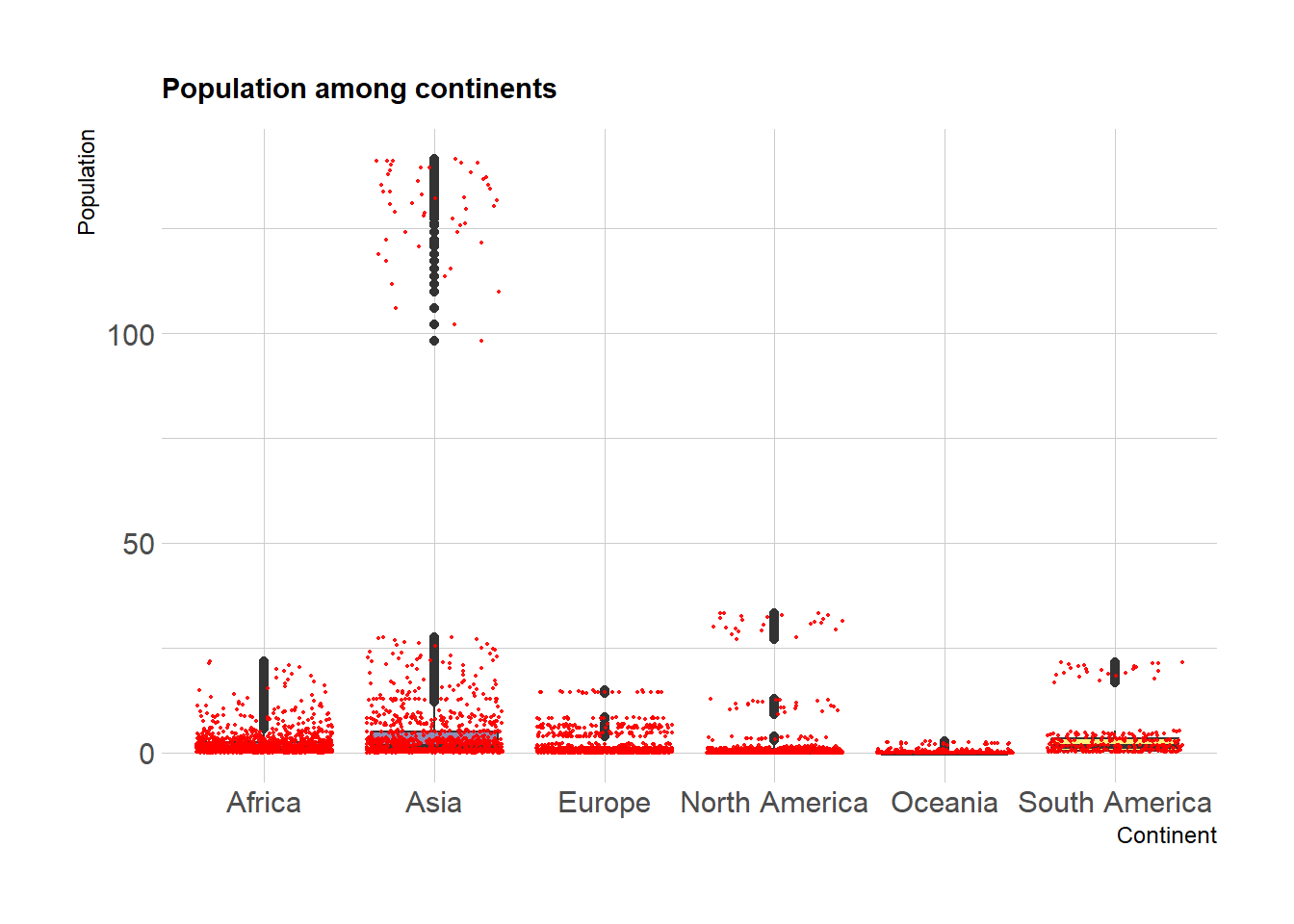

Plot - 1

corruption %>%
  ggplot( aes(x=continent, y=population, fill=continent)) +
    geom_boxplot() +
    scale_fill_viridis(discrete = TRUE, alpha=0.6) +
    geom_jitter(color="red", size=0.4, alpha=0.9) +
    theme_ipsum() +
    theme(
      legend.position="none",
      plot.title = element_text(size=11)
    ) +
    ggtitle("Population among continents") +
    ylab("Population")+
    xlab("Continent")

Based on the boxplot of population distribution among countries in each continent, we can read that Asia is the most populated area, and populated countries in North America has larger population than those countries in Europe. Oceania are the least populated area.

Plot - 2

myplots <- vector('list', 4)
for (i in 2019:2022){
    myplots[[i-2018]] =
      corruption %>%
      filter(year == i) %>%
      ggplot(aes(x = gdp_per_capita
, y = con_cor))+geom_point(color = 'purple')+geom_smooth(method = 'lm', se = FALSE, color = 'pink'
)+labs(title = sprintf("year %s", i))+ xlab("GDP per capita")
}

plot_row1 <- plot_grid(myplots[[1]], myplots[[2]])
plot_row2 <- plot_grid(myplots[[3]], myplots[[4]])
# title
title <- ggdraw() +
  draw_label(
    "Corruption against GDP per capita",
    fontface = 'bold',
    x = 0,
    hjust = 0
  ) +
  theme(
    # add margin on the left of the drawing canvas,
    # so title is aligned with left edge of first plot
    plot.margin = ggplot2::margin(0, 0, 0, 7)
  )
plot_grid(title,plot_row1,plot_row2 ,ncol=1,  label_size = 12,rel_heights=c(0.1, 1,1))

In addition, we also draw a scatter plot to check the relationship between control of corruption and GDP per capita.We can read that control of corruption is positively proportional to GDP per capita. However, when GDP per capita is high, the control of corruption keeps stable and does not follow the rising trend of GDP per capita.

Regression Analysis

Introduction

In this part, linear regression models are generated to help us to have a better understanding of the relationship between corruption index and other variables. After data cleaning, all variables and the number of missing data are shown below.

overall_dataset = read.csv("data/cleaned_data/overall_dataset.csv")

NA_table_1 =
  overall_dataset|>
  is.na()|>
  colSums()
NA_table_1|>
    knitr::kable(col.names = c("Counts of NA")) |>
  kable_styling("striped", full_width = TRUE)

	Counts of NA
country_name	0
country_code	0
con_cor	3
gov_eff	3
pol_vio	1
regu_qual	3
rul_law	3
voi_acc	6
GDP	14
population	9
latitude	3
longitude	3
development	0
continent	0

overall_dataset =
  overall_dataset|>
  drop_na()|>
  dplyr::select(-country_name, -latitude, -longitude,-country_code)

Full model

full.model = lm(con_cor ~ ., data = overall_dataset)
empty.model = lm(con_cor ~ 1,data = overall_dataset)

The full model includes all variables except latitude and longitude since continent is included as location information. This model is treated as the baseline to compare with model after selection.

Tables below show summary information of the full model. The p-value for government_effectiveness, rule_of_law, voice_and_accountability, continentEurope have p-value lower than any reasonable significance level(1%, 5%, 10%), which means these variable are more significant than other in this model. The R2adj for this model is 0.8983053, which presents a very high proportion of variance in response variable explained the linear relationship between with predictors and response variable.

All.Criteria = function(the.model){
  tibble(

    the.BIC = BIC(the.model),
    the.LL = logLik(the.model),
    the.AIC = AIC(the.model),
    the.PRESS = PRESS(the.model),
    the.R2adj = summary(the.model)$adj.r.squared,

  )
}
full.model|>
  broom::tidy()|>
  dplyr::select(term, estimate, p.value)|>
  knitr::kable(caption ="Estimate and P-value for full model") |>
  kable_styling("striped", full_width = TRUE)

Estimate and P-value for full model
term	estimate	p.value
(Intercept)	0.1405094	0.0993719
gov_eff	0.4658574	0.0000001
pol_vio	0.0200257	0.6618070
regu_qual	-0.0512946	0.4923111
rul_law	0.4528029	0.0000004
voi_acc	0.1649606	0.0008278
GDP	0.0000044	0.7551193
population	-0.0027533	0.1800214
developmentDeveloping	-0.0875213	0.2492473
developmentLeast Developed	0.0358069	0.7219710
continentAsia	-0.1084208	0.1614065
continentEurope	-0.2158619	0.0205606
continentNorth America	-0.1440205	0.1287667
continentOceania	-0.0219779	0.8378814
continentSouth America	-0.0800786	0.4969813

All.Criteria(full.model)|>
  knitr::kable(caption = "Criterias for full model") |>
  kable_styling("striped", full_width = TRUE)

Criterias for full model
the.BIC	the.LL	the.AIC	the.PRESS	the.R2adj
170.5324	-42.96004	117.9201	22.12111	0.8987517

check normality and remove outlier

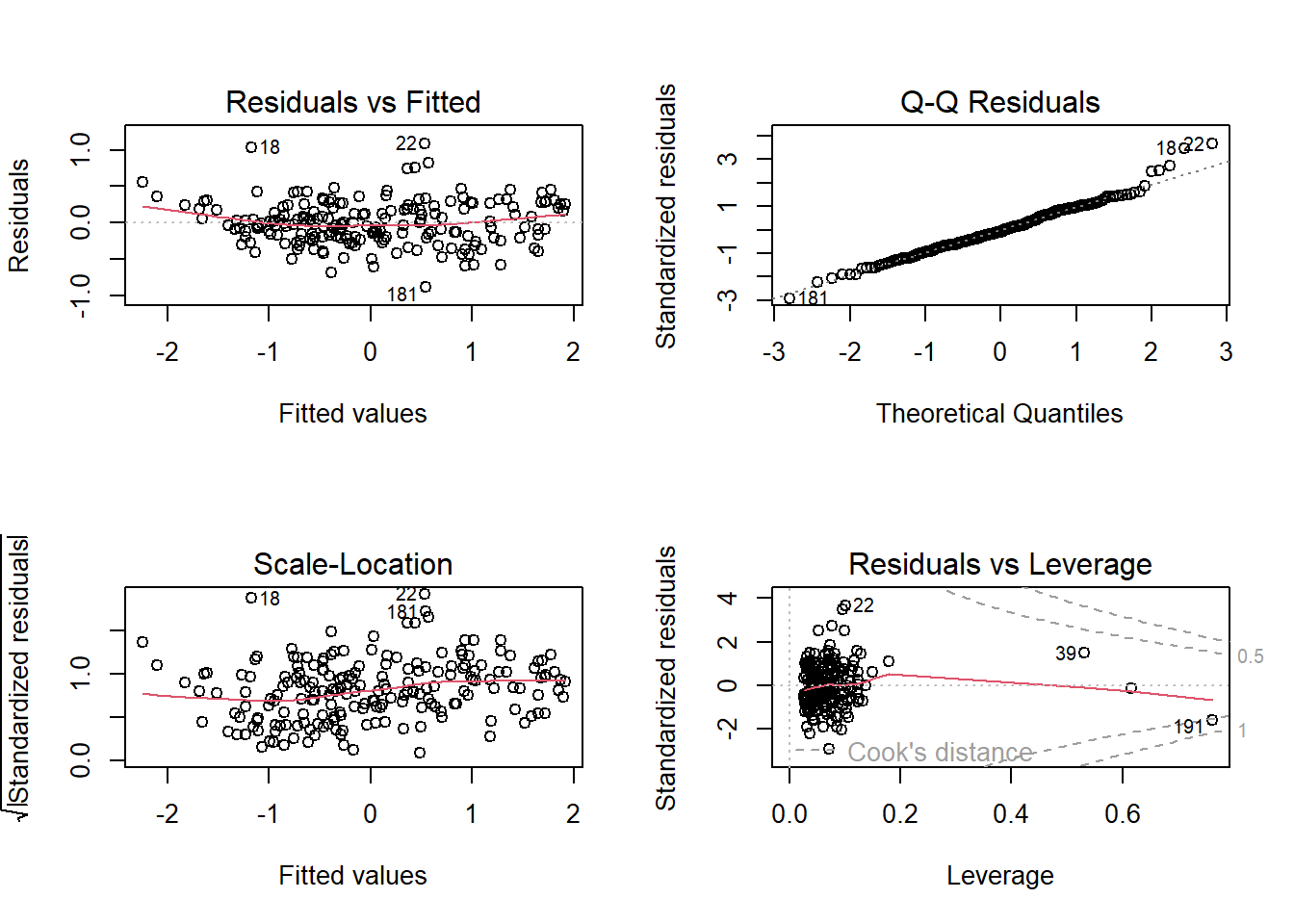

Plots below shows that the residuals are overall normally distributed. The qq-plot shows that the regression is linear and there is no need to add transformation variables. But potential outliers are presented. Then, outliers are detected and removed by using cutoffs based on t-distribution. With data after removing outliers, the full model is updated, and BIC and AIC are all decreased, which indicate a better balance between explaining the data and avoiding overfitting.

SR = stdres(full.model)
n = length(full.model$residuals)
p = length(full.model$coefficients)
alpha = 0.01
t.cutoff = qt(1- alpha/2, n-p)

par(mfrow=c(2,2))
plot(full.model)

outliers = which(abs(SR)>t.cutoff)
outliers|>
  knitr::kable(caption = "outliers") |>
  kable_styling("striped", full_width = TRUE)

outliers
	x
18	18
22	22
158	158
181	181

new.data = overall_dataset[-outliers,]

full.model = lm(con_cor ~ ., data = new.data)
All.Criteria(full.model)|>
  knitr::kable(caption ="Estimate and P-value for updated full model") |>
  kable_styling("striped", full_width = TRUE)

Estimate and P-value for updated full model
the.BIC	the.LL	the.AIC	the.PRESS	the.R2adj
124.7907	-20.25249	72.50499	17.67333	0.9186777

Selected model

After the updated full model is built, backward and forward selection function is applied to gain selected models.

backward model selection

The summary of backward selected model is shown below. pol_vio, regu_qual, GDP are deleted. This is expected because these variables have relatively high p-value that presented in full model above.

backward.model.AIC = stepAIC(full.model, scope = list(lower = empty.model, upper= full.model), k = 2,direction = "backward",trace = FALSE)
forward.model.AIC = stepAIC(empty.model, scope = list(lower = empty.model, upper= full.model), k = 2,direction = "forward",trace = FALSE)

backward.model.AIC|>
  broom::tidy()|>
  dplyr::select(term, estimate, p.value)|>
  knitr::kable(caption ="Estimate and P-value for backward selected model") |>
  kable_styling("striped", full_width = TRUE)

Estimate and P-value for backward selected model
term	estimate	p.value
(Intercept)	0.1360034	0.0668905
gov_eff	0.4338981	0.0000000
rul_law	0.4574146	0.0000000
voi_acc	0.1639242	0.0001597
population	-0.0020295	0.1548008
developmentDeveloping	-0.0830818	0.2107660
developmentLeast Developed	0.0155433	0.8595612
continentAsia	-0.1376894	0.0482038
continentEurope	-0.2462142	0.0034882
continentNorth America	-0.1360832	0.0925339
continentOceania	0.0645921	0.4889771
continentSouth America	-0.0793981	0.4483360

All.Criteria(backward.model.AIC)|>
  knitr::kable(caption = "Criterias for backward selected selected model") |>
  kable_styling("striped", full_width = TRUE)

Criterias for backward selected selected model
the.BIC	the.LL	the.AIC	the.PRESS	the.R2adj
109.1065	-20.31216	66.62433	16.12417	0.919969

forward model selection

The summary of forward selected model is shown below. pol_vio, GDP, continent are deleted. Comparing to backward selected model, continent is also deleted instead of regu_qual.The possible reason is that forward selection may be more sensitive to the order in which variable are added; on the other hand, backward selection tends to be more stable and less dependent on the order of variable removal.

forward.model.AIC|>
  broom::tidy()|>
  dplyr::select(term, estimate, p.value)|>
  knitr::kable(caption ="Estimate and P-value for forward selected model") |>
  kable_styling("striped", full_width = TRUE)

Estimate and P-value for forward selected model
term	estimate	p.value
(Intercept)	-0.0092939	0.8550218
rul_law	0.4944472	0.0000000
gov_eff	0.4731432	0.0000000
voi_acc	0.1582462	0.0000360
developmentDeveloping	-0.0281897	0.6759664
developmentLeast Developed	0.1464242	0.0937479
population	-0.0027154	0.0879449
regu_qual	-0.0954539	0.1661501

All.Criteria(forward.model.AIC)|>
  knitr::kable(caption = "Criterias for forward selected selected model") |>
  kable_styling("striped", full_width = TRUE)

Criterias for forward selected selected model
the.BIC	the.LL	the.AIC	the.PRESS	the.R2adj
140.8401	-46.62285	111.2457	20.37547	0.8988063

Comparision of full model, forward and backward selected model

Backward selected model has the lowest BIC and highest R2adj. Interestingly, forward selected model has the lower than BIC and R2adj than unselected full model, which indicated that continentEurope has unexcepted significance in the whole model.

forward_model = All.Criteria(forward.model.AIC)|>
  mutate(the.LL = as.double(the.LL))
backward_model = All.Criteria(backward.model.AIC)|>
  mutate(the.LL = as.double(the.LL))

full_model = All.Criteria(full.model)|>
  mutate(the.LL = as.double(the.LL))

comparsion =
  bind_rows( full_model,forward_model, backward_model)|>
  mutate(model = c('full', 'forward', 'backward'))|>
  dplyr::select(model, everything())|>
  knitr::kable(caption = "Comparision of full model, forward and backward selected model") |>
  kable_styling("striped", full_width = TRUE)


comparsion

Comparision of full model, forward and backward selected model
model	the.BIC	the.LL	the.AIC	the.PRESS	the.R2adj
full	124.7907	-20.25249	72.50499	17.67333	0.9186777
forward	140.8401	-46.62285	111.24569	20.37547	0.8988063
backward	109.1065	-20.31216	66.62433	16.12417	0.9199690

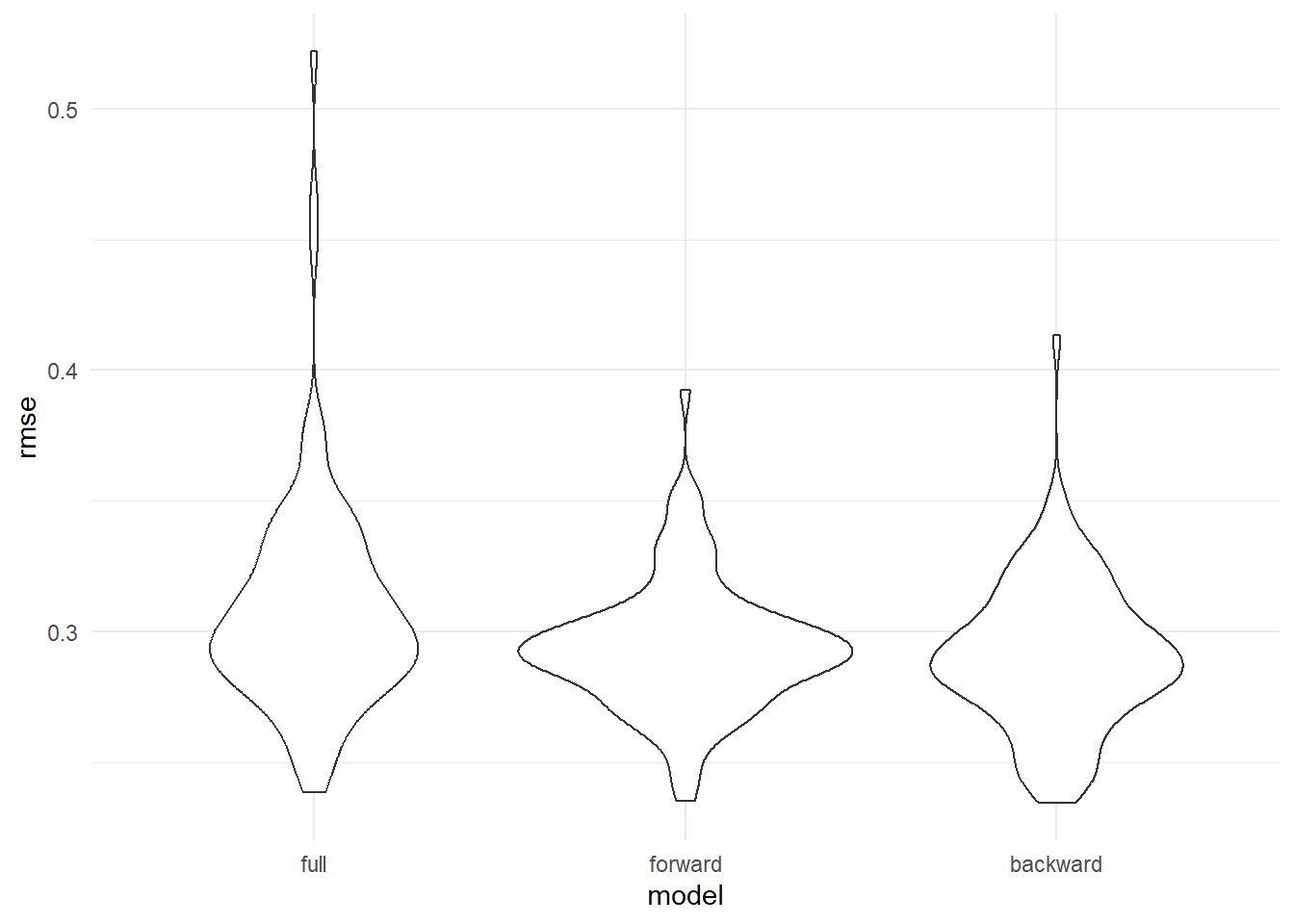

Then, the dataset is divided into train and test datasets 100 times. The graph below shows the RMSE distribution in test datasets for three models. From the plot, forward and backward selected model have RMSE around 0.2 to 0.4. However, the RMSE of full model is over-spread. The interference of GDP and pol_vio could lead to the result.

Test the model

cv_df =
  crossv_mc(new.data, 100) |>
  mutate(
    train = map(train, as_tibble),
    test = map(test, as_tibble))

cv_df =
  cv_df |>
  mutate(
    model_full  = map(train, \(df) lm(con_cor ~ ., data = df)),
    model_forward  = map(train, \(df) lm(con_cor ~ rul_law + gov_eff + voi_acc + development + population + regu_qual, data = df)),
    model_backward  = map(train, \(df) lm(con_cor ~ rul_law + gov_eff + voi_acc + development + population  + continent, data = df)))|>
  mutate(
    rmse_full = map2_dbl(model_full, test, \(mod, df) rmse(model = mod, data = df)),
    rmse_forward = map2_dbl(model_forward, test, \(mod, df) rmse(model = mod, data = df)),
    rmse_backward = map2_dbl(model_backward, test, \(mod, df) rmse(model = mod, data = df)))

cv_df |>
  dplyr::select(starts_with("rmse")) |>
  pivot_longer(
    everything(),
    names_to = "model",
    values_to = "rmse",
    names_prefix = "rmse_") |>
  mutate(model = fct_inorder(model)) |>
  ggplot(aes(x = model, y = rmse)) + geom_violin()

The graphs below show the Prediction VS Actual for three models. Overall, there is no significant difference between three models.

new.data|>
  modelr::add_predictions(full.model)|>
  ggplot(aes(x = con_cor, y = pred)) +
  geom_point() +
  geom_abline(intercept = 0, slope = 1, color = "blue") +
  labs(

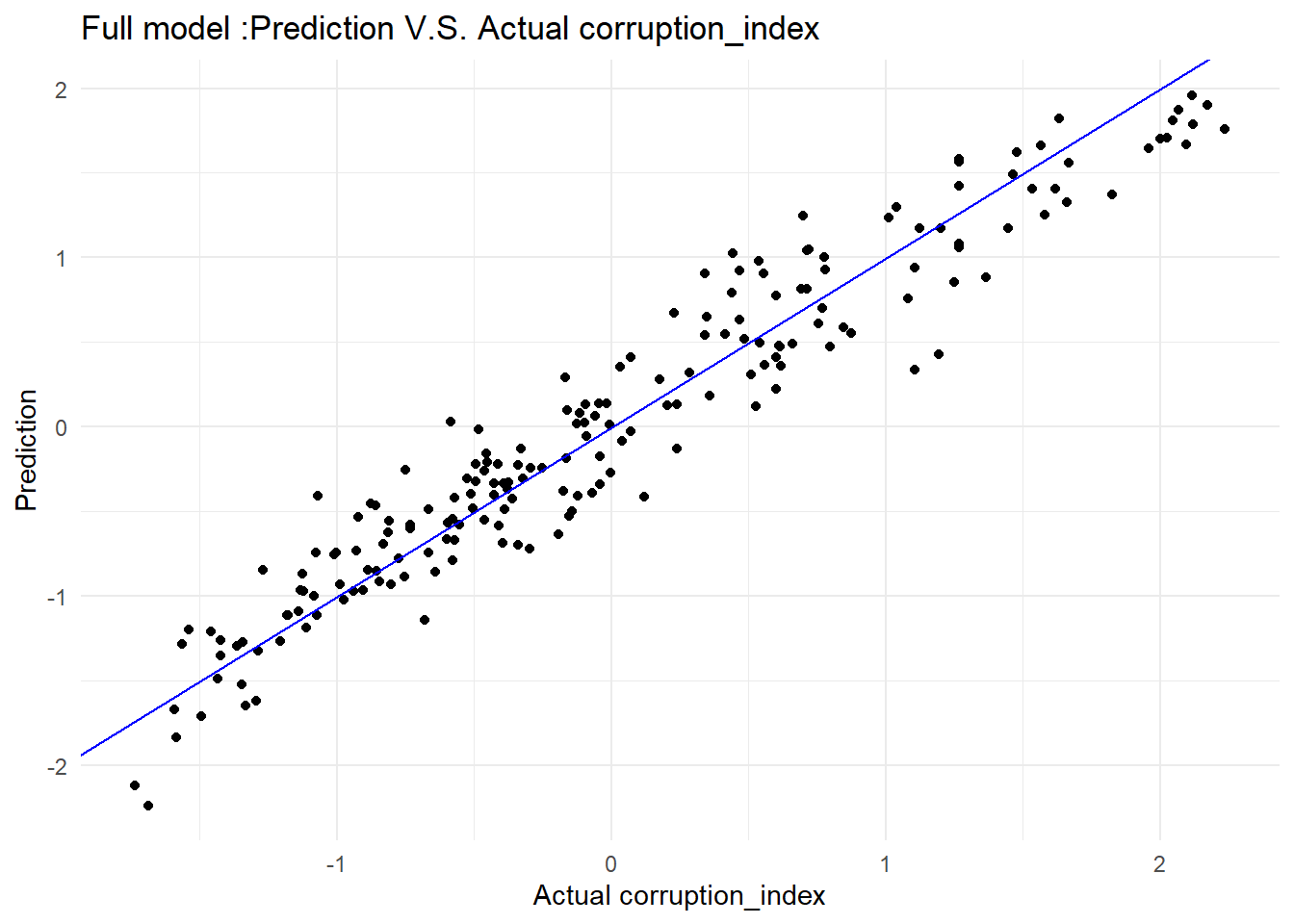

    title = "Full model :Prediction V.S. Actual corruption_index",
    x = "Actual corruption_index",
    y = "Prediction"
  )

new.data|>
  modelr::add_predictions(forward.model.AIC)|>
  ggplot(aes(x = con_cor, y = pred)) +
  geom_point() +
  geom_abline(intercept = 0, slope = 1, color = "blue") +
  labs(

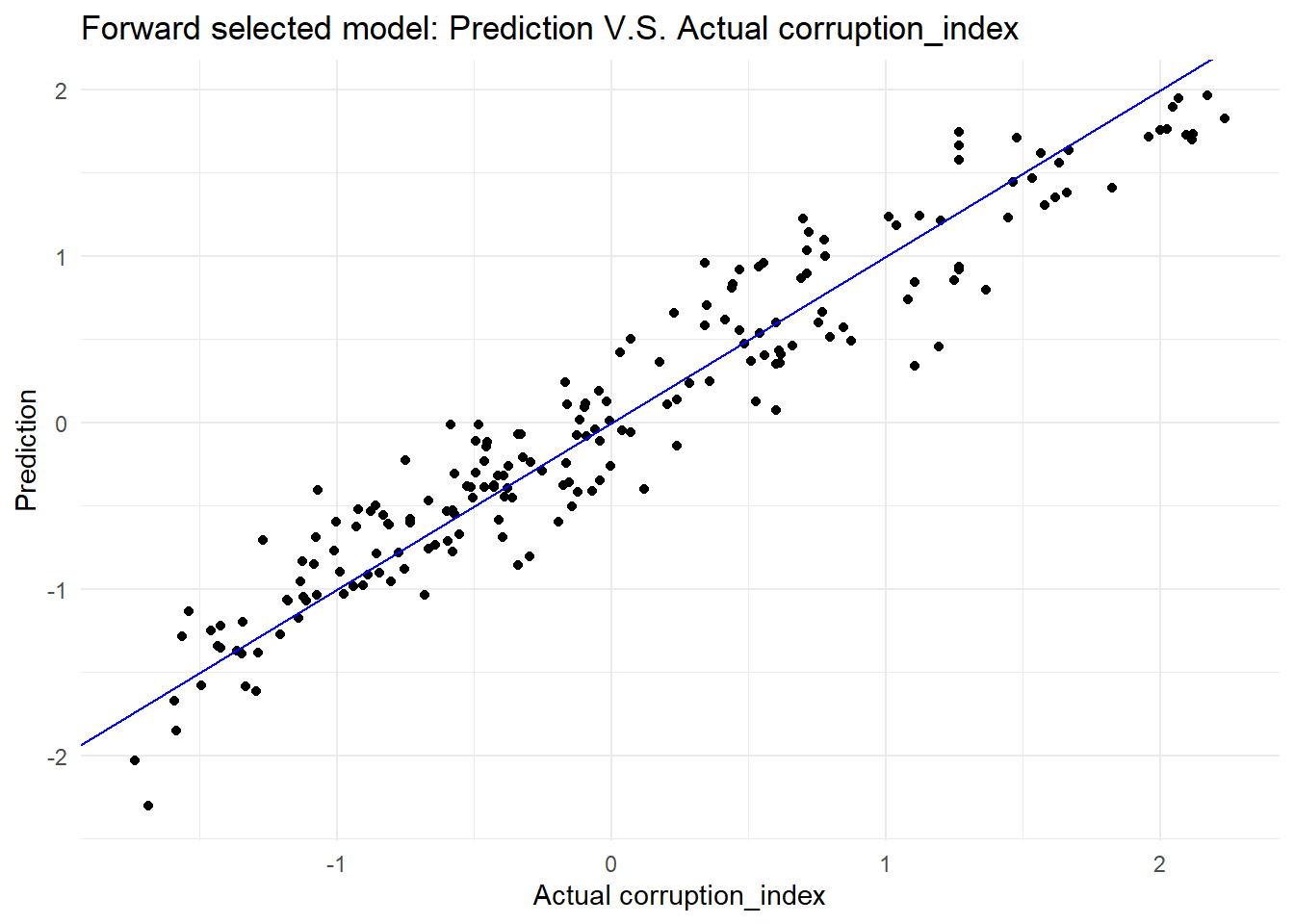

    title = "Forward selected model: Prediction V.S. Actual corruption_index",
    x = "Actual corruption_index",
    y = "Prediction"
  )

new.data|>
  modelr::add_predictions(backward.model.AIC)|>
  ggplot(aes(x = con_cor, y = pred)) +
  geom_point() +
  geom_abline(intercept = 0, slope = 1, color = "blue") +
  labs(

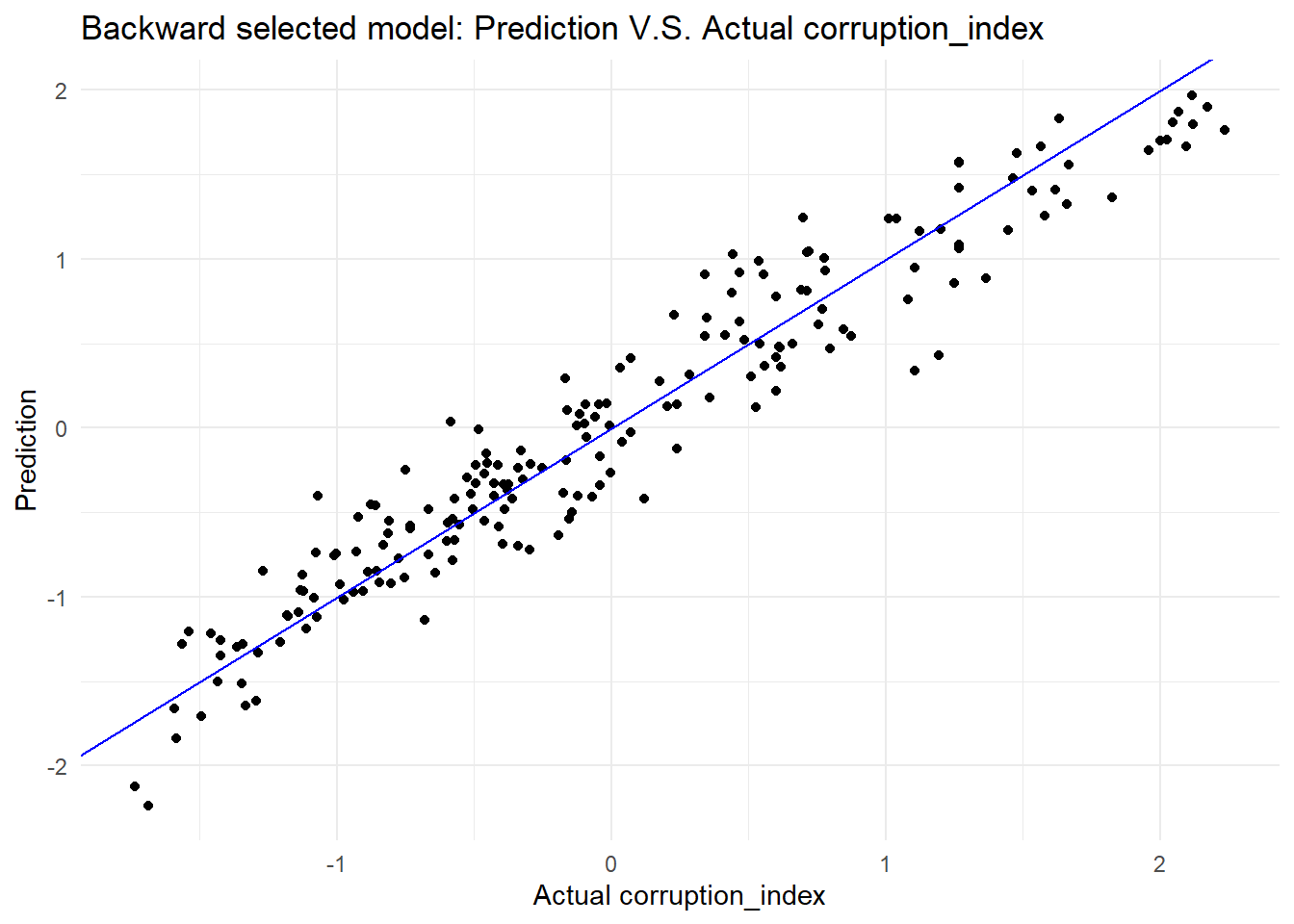

    title = "Backward selected model: Prediction V.S. Actual corruption_index",
    x = "Actual corruption_index",
    y = "Prediction"
  )

Conclusions

To sum up, before building a regression model, we except GDP would be one of the most significant variable to predict corruption index. However, the result shows that there is nearly no correlation between GDP and corruption index. Based on analysis above, there is no significant differences between the three models. But backward selected model is the most optimal model to predict corruption index.It has the lowest BIC and AIC, which means this model achieves a better balance between fitting the data well and avoiding overfitting comparing to the other two models.

Discussion

Through our group’s research, we discovered that there are certain patterns in the geographic distribution of the Government Integrity Index. Notably, European countries generally have a higher Integrity Index compared to other nations. In exploring the factors influencing the Corruption Perceptions Index (CPI) using models, we found that government administration, the establishment of legal norms, and being located in Europe have the most significant positive impact on the CPI. Surprisingly, we observed that GDP has almost no impact on the CPI, indicating that a country’s GDP level does not affect the overall integrity of its government. This unexpected finding prompts us to delve deeper into the reasons behind it. For more details about our research, we invite readers to explore further in our report.

Limitations

In our project, the initial challenge was managing and merging datasets from different sources with varying data formats. This required extensive data cleaning and standardization, including the introduction of country codes to harmonize the disparate naming conventions for countries. When visualizing trends, such as in the control of corruption, we encountered difficulties using histograms or bar plots due to minimal differences between data points. Switching to line plots, however, revealed a clear rising trend. Learning and applying new visualization methods, like pie plots and 3D plots (using tools like Plotly), was also a significant challenge, especially when these methods were not always suitable for the data relationships we wanted to showcase.

The process of learning Shiny was complex but interesting, initially posing some difficulties for our team. However, we managed to master the technology through learning from relevant websites and applied it effectively in this assignment.

The creation of our project’s webpage brought its own set of challenges, particularly in making it aesthetically pleasing. We spent considerable time searching for images and icons that matched the theme of our webpage and struggled with linking the analyzed data to corresponding sections effectively. This often led to frustration when links did not open as intended. Another critical aspect was recording a video to demonstrate our project, which required a deep understanding of every project component, such as the regression models used and the conclusions drawn from them. This comprehensive approach was crucial to effectively communicate our findings and the process behind them.

Final Report

2023-12-09
